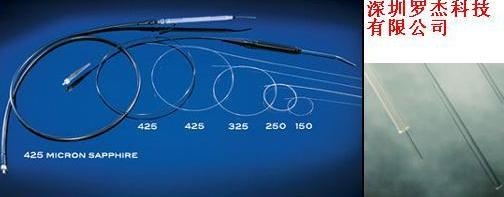

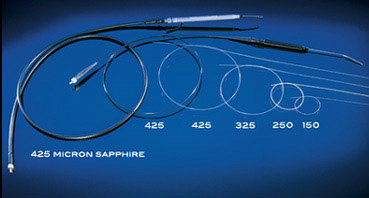

Sapphire Optical Fiber
- Bare Fibers
- Cable Assemblies
- SMA 905 Termination (Standard and High Power)
- PTFE, PEEK & S/S Armor Cable Options
- Flexible for medical laser delivery and sensors
- 150, 250, 325 & 425 micron diameter
- Up to 2 meter lengths
- Curved / bent sapphire tips
The Sapphire Fiber Advantage
.Biocompatiable, nontoxic, USP Class VI approved - passes both implant and elution test
protocols
.High transmission from visible to beyond 3 micron wavelength.
.Flexible - bend radius as low as 20mm for 150 micron fiber diameter.
.High Strength - 400,000 psi/2.8 GPa - use of PTFE buffer further improves durability and
handling.
.High laser damage threshold (1200 J/em2) and high melting point (2053ºC) enable high
repetition rates and average power.
Sapphire Optical Fiber Specifications
|
Fiber Core Diameter (microns, um)
|
125
|
250
|
325
|
425
|
|
Buffer Diameter (microns, um)
|
400
|
450
|
650
|
750
|
|
Buffer thickness um
|
137.5
|
100
|
162.5
|
162.5
|
|
|
0.12
|
0.12
|
0.12
|
0.12
|
|
Transmission (per meter)
|
80%
|
80%
|
80%
|
80%
|
|
Minimum Bend Radius (mm)
|
20
|
30
|
60
|
80
|
|
Length-Maximum Standard (m)
|
2
|
2
|
2
|
2
|
|
Length-Maximum Special Order (m)
|
4
|
4
|
4
|
4
|
|
